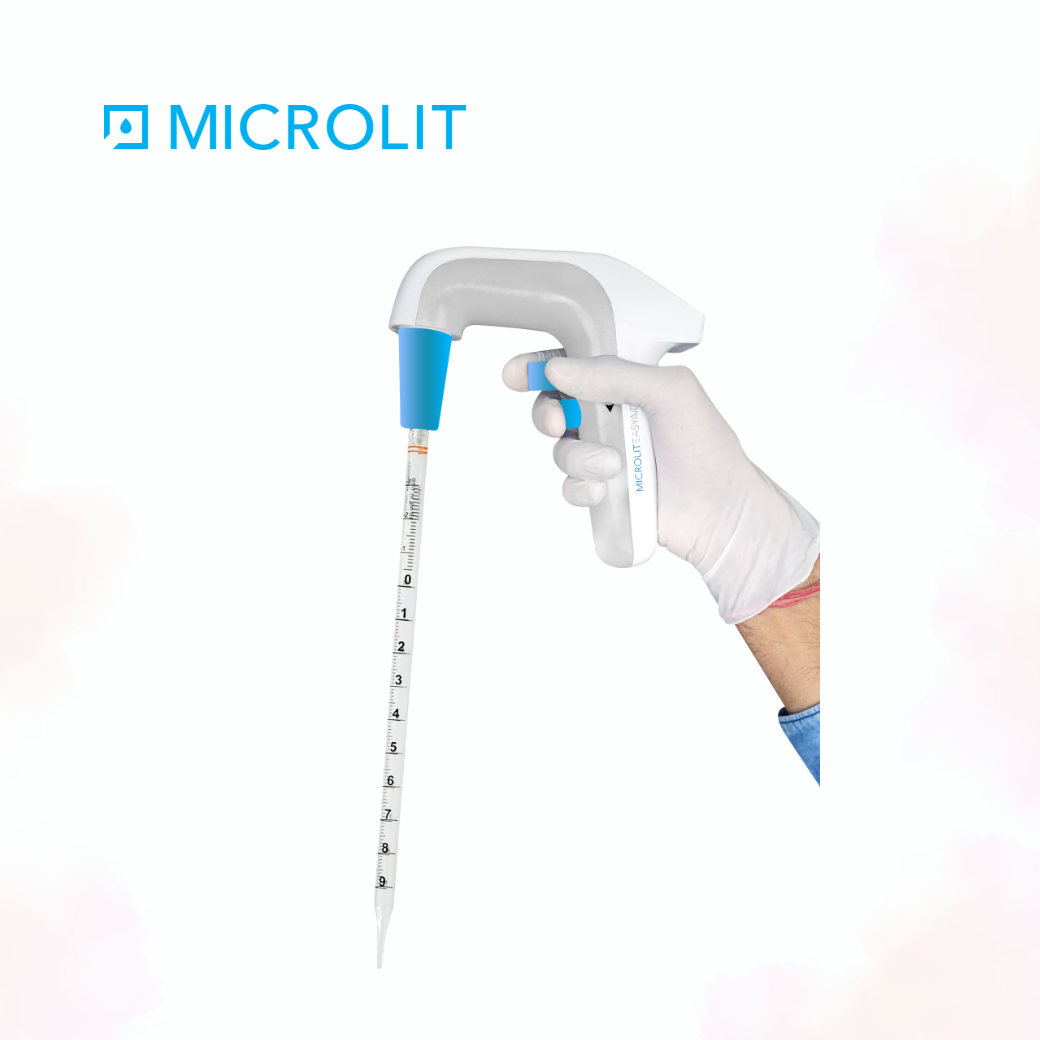

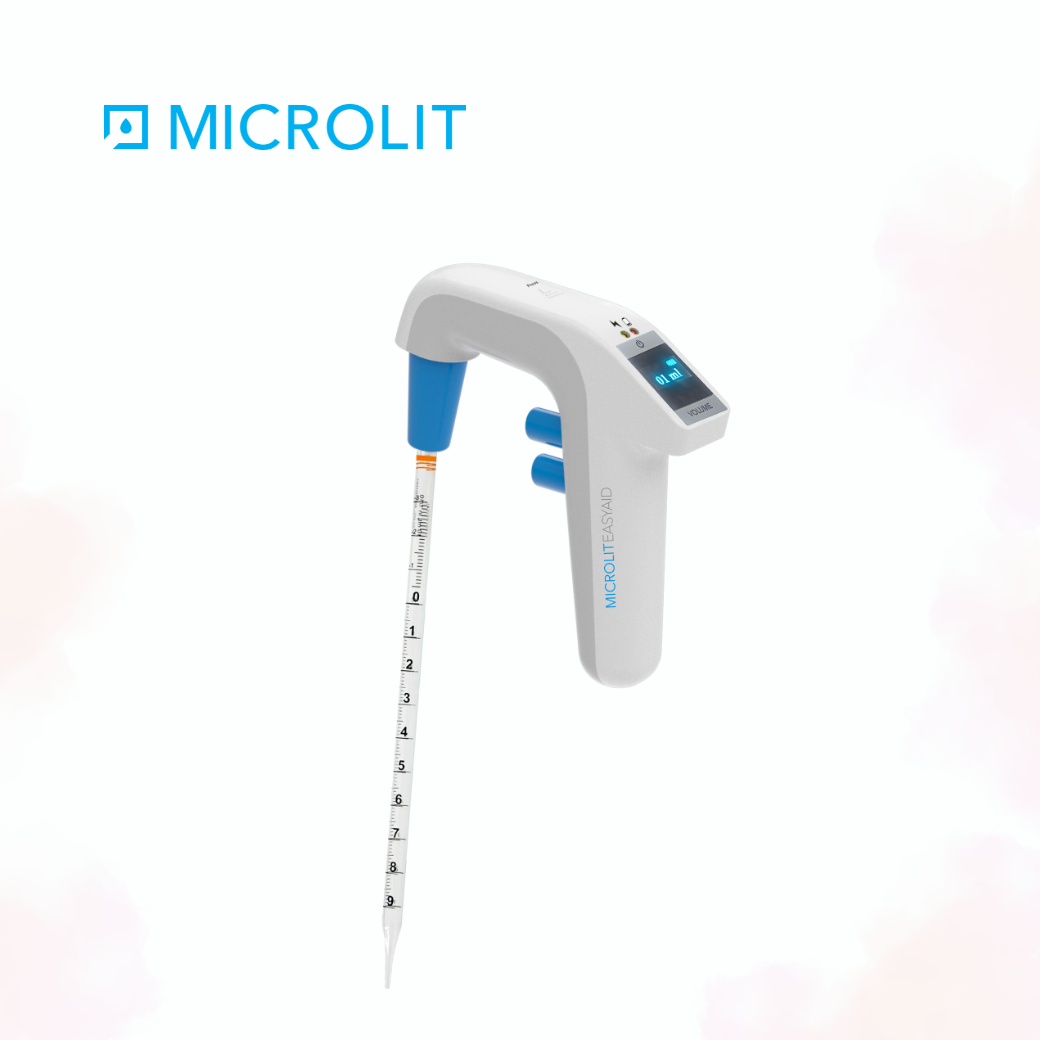

MICROLIT : EASYAID – Electronic Pipette Filler

5 stars 4 stars 3 stars 2 stars 1 star

0.00 บาท

with Solenoid Valve (Patent Pending) and Force Touch Technology Microlit EASYAID Electronic Pipette Filler redefines pipetting with Hall Sensors in Force Touch Technology and Solenoid Valve. It empowers researchers with unprecedented precision and control, driving scientific advancement. Suitable for all standard pipettes of 1 ml to 100 ml
ดาวน์โหลดเอกสาร

Features
Specifications

USE OF HALL SENSORS WITH FORCE TOUCH TECHNOLOGY
The plunger buttons have magnets that interact with hall sensors mounted on the PCB to control
the speed of aspiration and dispensing in an electronic pipette filler.
USAGE OF SOLENOID VALVE (Patent Pending)
The usage of Solenoid Valve system allows lab scientists to fill/dispense serological pipettes accurately and makes experiments more time-efficient.
IN-LINE MEMBRANE FILTER
A PTFE Hydrophobic In-Line Membrane Filter (0.2 microns) prevents aerosol contamination and accidental liquid entry.
UNIVERSAL SILICON COLLET ADAPTER
The universal silicon adapter with internal knurling that can easily accommodate glass/plastic pipettes from 1 ml to 100 ml and hold them firmly during various liquid handling operations.
1-INCH TEMPERED OLED SCREEN
Large easy-to-read monochrome display screen adds a layer of protection against accidental impacts, scratches and chemical spills.
UNIQUE GRAVITY DISPENSE MODE
When the dispenser plunger is pressed slightly, the pipette filler will dispense in Gravity Mode whereby the pump is not activated but the dispense valve is operational.
PROGRAMMED VOLUME SELECTION FOR SMOOTH FUNCTIONING
The user may select the capacity of serological pipette to adjust the fill and dispense speed range of operation from 1 ml, 2 ml, 5 ml, 10 ml, 25 ml, 50 ml and 100 ml.
PRESSURE SPEED CONTROL
The user may control the speed of aspiration and dispensing by adjusting the applied pressure on the
plunger buttons.
AUTOCLAVABLE AT 121°C
The collet assembly and 0.2 microns In-Line Membrane Filter, contained within it, are fully autoclavable at 121°C temperature and 15 psi for 10-15 minutes.

Pipette Capacity Selection	The user may select the capacity of the serological pipette to adjust the fill and dispense speed range of operation. The user may select from 1 ml, 2 ml, 5 ml, 10 ml, 25 ml, 50 ml and 100 ml options.
Speed Control	The user may control the speed of aspiration and dispensing by adjusting the applied pressure on the plunger buttons.
Max Speed	The user may fill a 25 ml pipette at maximum motor speed in only 3 seconds. Pipette capacity Max Speed: 1 ml – 0.3 ml / sec 2 ml – 0.6 ml / sec 5 ml – 1.5 ml / sec 10 ml – 3 ml / sec 25 ml – 8 ml / sec 50 ml – 8 ml / sec 100 ml – 8 ml / sec
Gravity Dispensing	When the dispense plunger is pressed slightly, the instrument will dispense in gravity mode where by the pump is not activated but the dispense valve is operational.
Rechargeable Battery	Lithium-ion batteries (3.7 V/1400mAh) that could be fully charged in 3 hours. A fully charged battery will enable up to 8 hours of continuous use. The battery is removable as per users’discretion.
Charging Options	Direct charging (with/without stand)- Charge via micro-USB port on the instrument with a standard 5V charging adaptor.
Wall Stand	NO
Self Standing	Yes
Battery Status Indication	LED indication for low battery (red), charging (yellow), Yellow LED turns off when battery is fully charged.
Display Type	1″ monochrome OLED screen.
Stand	A complimentary stand is included in the packaging box.
Weight	238gm.
Autoclavable	The Collet Assembly and the 0.2 microns In-line Membrane Filter, contained within it, are fully autoclavable at 121°C temperature and 15 psi for a duration of 10-15 minutes.
In-Line Membrane Filter Included	A PTFE Hydrophobic In-line Membrane Filter (0.2 microns) prevents aerosol contamination and liquids from accidental liquid entry.
Universal for all serological pipettes	Universal Silicon Collet Adapter with internal knurling holds all pipettes firmly, and can easily accommodate pipettes from 1 ml to 100 ml.
