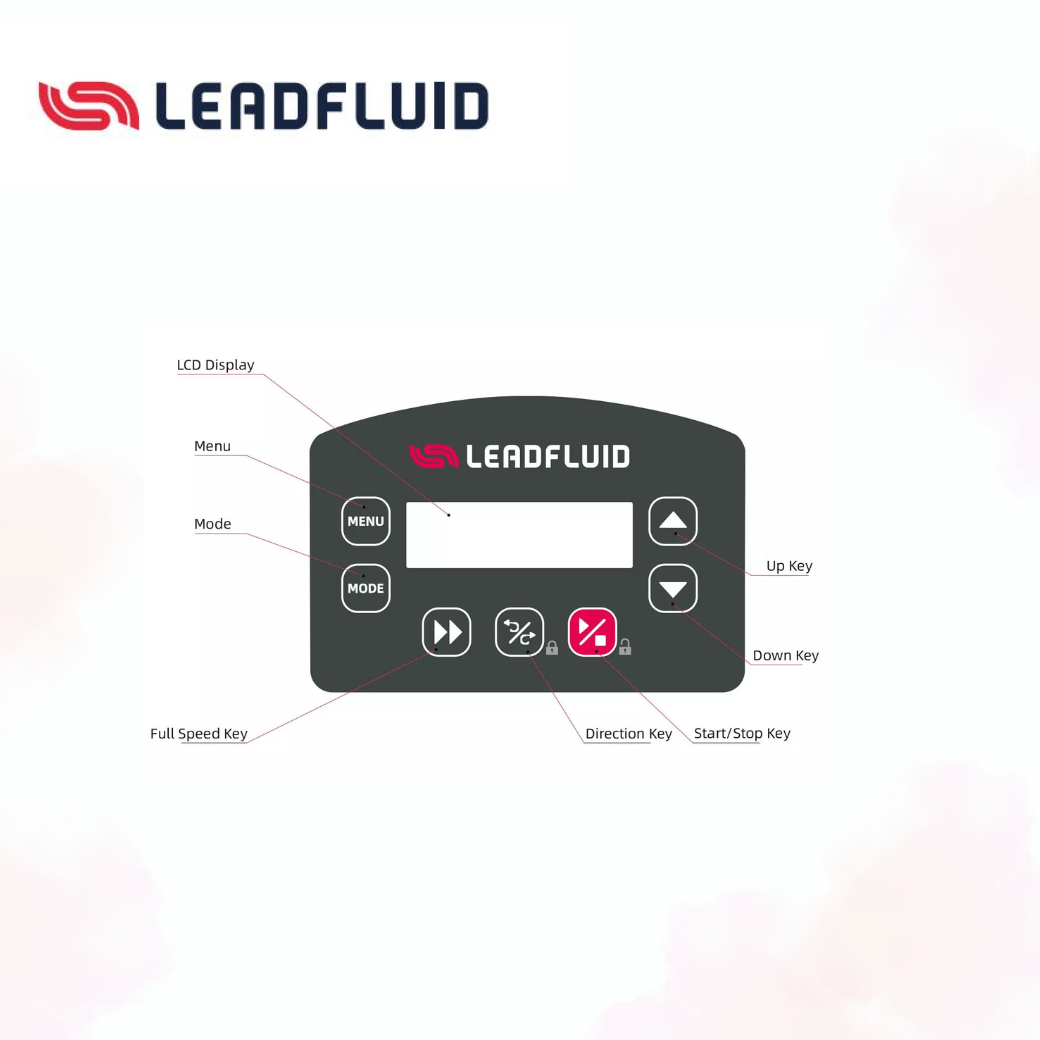

•128 * 32 LCD screen, Chinese and English switching, simple parameter setting, intuitive status display.

•It can realize start and stop, speed regulation, timing operation and other operations remotely through the Lead Fluid APP software, and has monitoring functions such as shutdown alarm, pump tube replacement reminder and so on (optional)

•Delay start and delay stop function.

•Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).

•External analog speed regulation, external control signal control start and stop, positive and negative, physical isolation of external control signal.

•External control signal supports 5-24v wide voltage input.

•External speed control signal type (voltage or current) can be switched through the control panel.

•RS485 communication interface, MODBUS protocol is available, support communication parameter settingeasy to connect other equipments.

•Set multiple control parameters for ODM customization application.

•Circuit board with conformal coating makes it dust-proof and moisture-proof.

•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .

•ABS plastic housing, creative streamlined appearance, beautiful and simple.

Specifications

-Flow range: 0.005～1750mL/min

-Speed range: 0.1～350rpm

-Speed resolution: 0.1rpm（speed≤100rpm）, 1rpm（speed＞100rpm）

-Speed accuracy: <0.5%

-Working time: 0.1～999 S/Min/H/D

-Dispensing interval time: 0.1～999 S/Min/H/D

-Dispensing time: 1～999,“0” Infinite loops

-External control: External control input level 5V, 12V(Standard), 24V (Optional), External control analog 0-5V(Standard)，0-10V, 4-20mA (Optional)

-Communication interface: RS485 communication interface, MODBUS protocol is available

-Power supply: AC 100-240V 50/60Hz

-Power consumption: <40W

-Working environment: Temperature 0 ～ 40℃, relative humidity＜80%

-IP grade: IP31

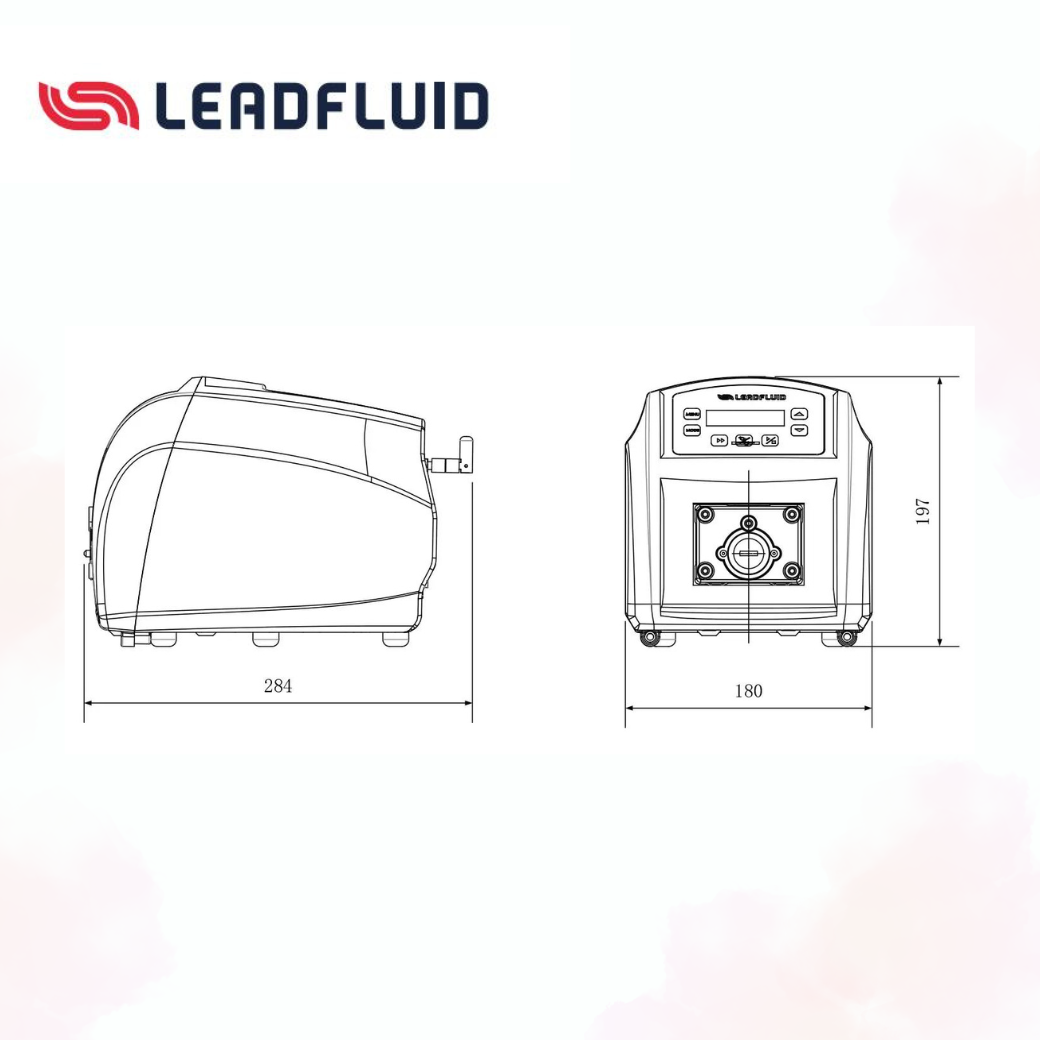

-Dimension (L×W×H): 284mm×180mm×197mm

-Driver weight: 3.9kg
