Automated Crude Fat Extraction

Official Crude Fat Extraction Method AOCS Am 5-04

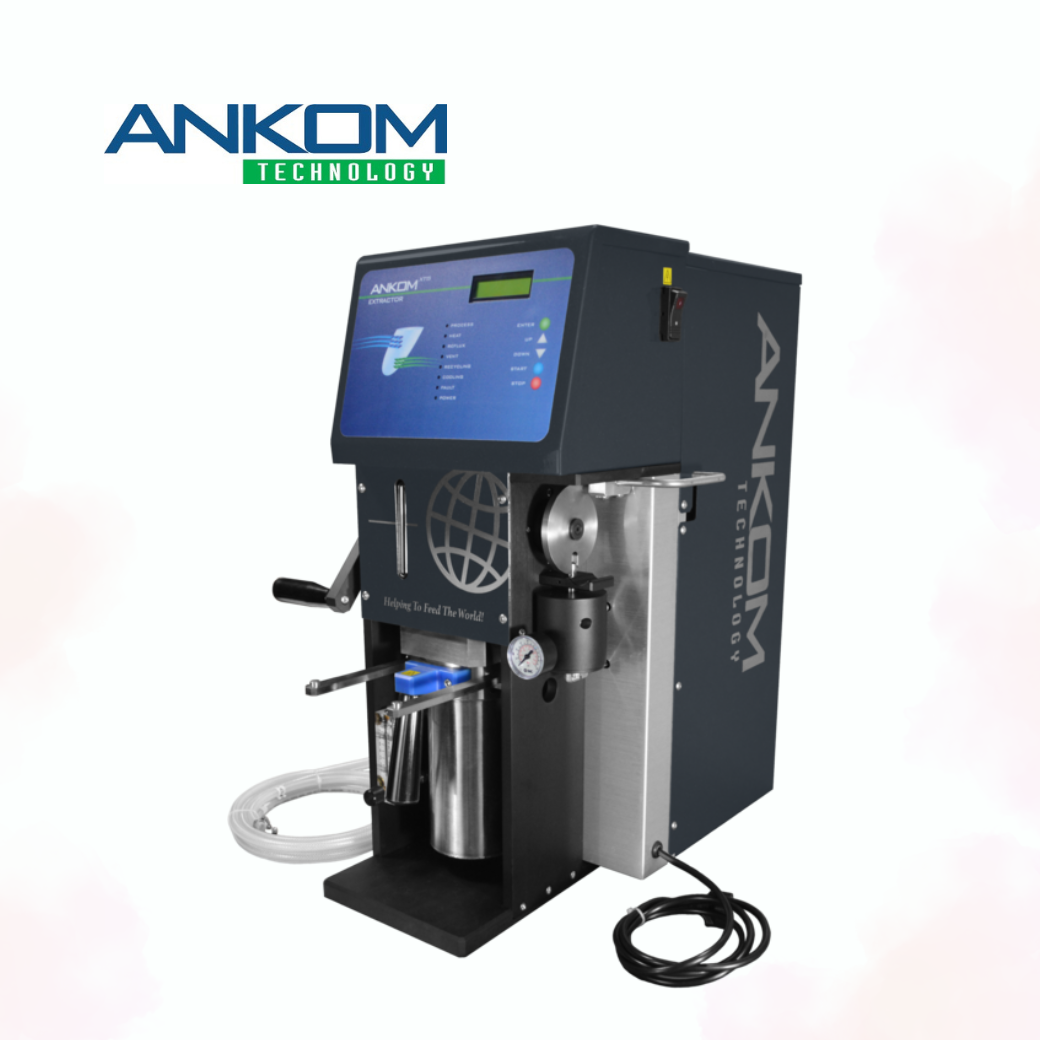

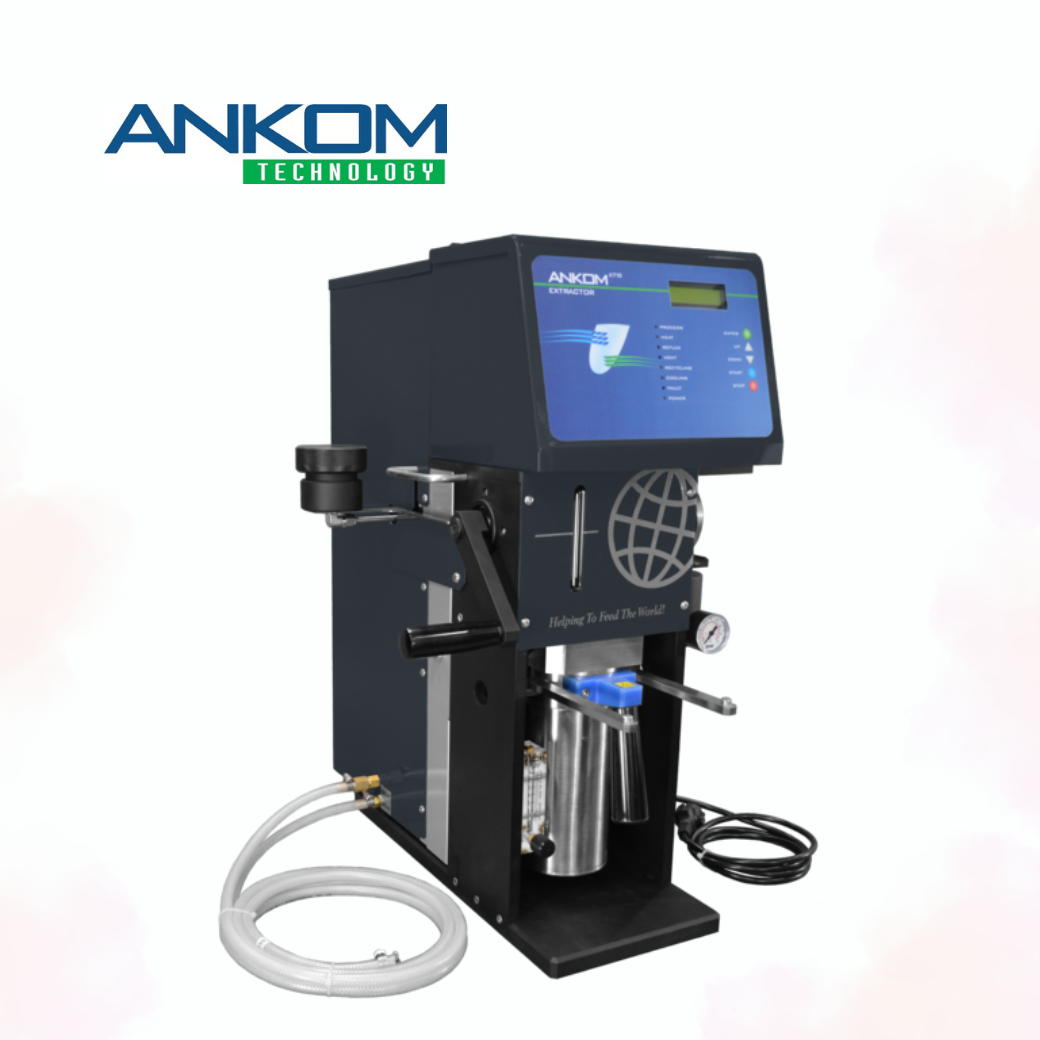

The ANKOM XT15 Extractor provides a solution for efficient and economical solvent extraction in fat/oil analysis. Fat ranges from 0% to 100% have been accurately determined using this procedure. The XT15’s low cost provides an affordable high-volume solution.

Filter Bag Technology simplifies handling and enables batch processing, allowing for the extraction of up to 15 samples at a time, 150 samples per day. The instrument’s 90°C temperatures accelerate extraction kinetics, reducing most extraction times to under 40 minutes. Automatic solvent recycling and activated charcoal filter eliminates the need for a vent hood and reduces costs.

If using solvents such as diethyl ether, please ask about required component upgrades.

·       Totally automatic operation

·       Up to 150 extractions per day

·       Closed system, no technician monitoring

·       Solvent recovery at a rate of >97%

·       Solvent usage per sample ~ 0.5 ml

·       No vent hood required

·       Can be used to calibrate NIR and other secondary methods
